Battery Cell Test System

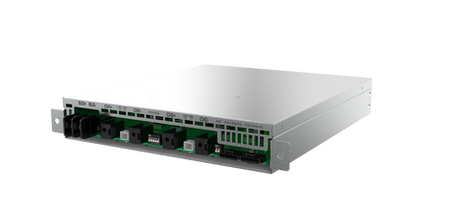

Regenerative Battery Cell Cycler

Applications
  • Cell formation and capacity sorting

  • DCIR testing

  • Electrochemical and physical material research

  • Laboratory testing of battery cells

  • Quality Assurance & Faliure Analysis

  • EV simulation working condition testing

  • Battery Repurposing and Recycling

High Voltage DC-bus

SiC

3ms Current

Response Time

Energy Conversion Efficiency: 80%

Voltage Accuracy: 0.02% FS

Current Accuracy: 0.03% FS

Supporting

peripheral linkage

Automatic Current Range Switch

100Hz Data Recording Rate

System Specifications

Additional Features

  • ​Intuitive Automation Control Software with powerful test-run editing capabilities

  • NTC or K-type Thermo Couple associated with Test Channel

  • Control Mode: CC,CV,CP,CR,Pulse, Simulated Working Conditions

  • I/O for integration of external equipment â€‹â€‹

  • Data security against power outage

  • High-frequency between-channel isolation

  • Integration of cell expansion test system possible

  • Customizable power cable length

  • Battery racks, fixutre and automated calibration instrument available upon request

Cell Formation Power Electronics

Technical  Highlights
  • Innovative 2-Stage DC Busbar Architecture

  • ​Highest energy conversion efficiency (>80%)

  • Cost-effective cell testing channel

  • Modular hardware design for easy maintenance and scalability

  • Compact Size for best facility space utilization​


Cell Expansion Test Kit

Why we need this?

Battery Cell Expansion Test Kit is used to measure and quantify the cell swelling behavior during the battery charge/discharge cycle with simulating the real-world operating conditions. The test kit consists of high-precision control system driven by servo motor, high precision thickness and expansion force measuring sensors and the multi-channel data logging system.

The recorded data can be reviewed and analyzed in the offline software tool that comes with this test kit.

Battery Jigs and Fixtures
